Application
Irrigation & drainage of small electrical equipment
Farm/Field irrigation and drainage
Rural well pumping and livestock breeding
Garden irrigation and daily water supply
Product Highlights
Permanent magnet DC submersible pump, efficient and energy-saving smart choice
1.Large flow, high lift, meeting diverse needs
Strong performance design, achieving a perfect combination of large flow and high lift, easily coping with various complex working conditions, meeting your diverse needs in different scenarios.
2.Plug and play, convenient operation
Specially designed for electric vehicles, plug and play, no need for complex installation, simple and quick operation, enabling efficient pumping operations anytime, anywhere.
3.Brushless permanent magnet motor, powerful and efficient
Adopting advanced brushless permanent magnet motor technology, the power output is more powerful, the operation is more stable, excellent performance, and long-lasting durability.
4.Lightweight design, portable and easy to use
Compared to traditional asynchronous products, weight reduced by more than 40%, light and portable, easy to carry with one hand, making it more flexible to use.
5.Rare earth material motor, energy-saving and efficient
The motor uses rare earth materials, meeting the national standard IE5 energy-saving standard, lower energy consumption, higher efficiency, saving you more electricity costs.
6.Compatible with various electric bicycle models
Widely compatible with various electric bicycle models, strong compatibility, worry-free installation, meeting the diverse choices of different users.
7.Stainless steel 304 base, electrophoresis pump body, durable and reliable
Stainless steel 304 base paired with electrophoretic pump body, corrosion-resistant, wear-resistant, significantly improving the service life, long-lasting durability, and reliable quality.
8.Multiple safety protections for worry-free electricity use
Equipped with multiple safety protection mechanisms, comprehensive protection of electrical safety, allowing you to use it with peace of mind, without fear of safety hazards.
9.Waterproof cable structure, excellent sealing
The cable is designed with a waterproof structure, with excellent sealing, effectively preventing water ingress, ensuring stable operation of the equipment in humid environments.
Technical Table
|
Voltage |
Performance Requirements |
Aperture (inch) |
Pipe Inner Diameter (mm) |
|
|
Power |
Flow/Head |
|||
|
48/60/72V |
0.4KW |
1.5-20 |
1 |
25 |
|
3-12 |
1.5 |
40 |
||
|
0.5KW |
3-16 |
1 |
25 |
|
|
8-9 |
1.5 |
40 |
||
|
0.6KW |
8-11 |
2 |
50 |
|
|
13-7 |
2.5 |
65 |
||
|
0.8KW |
8-12 |
2 |
50 |
|
|
13-10 |
2.5 |
65 |
||

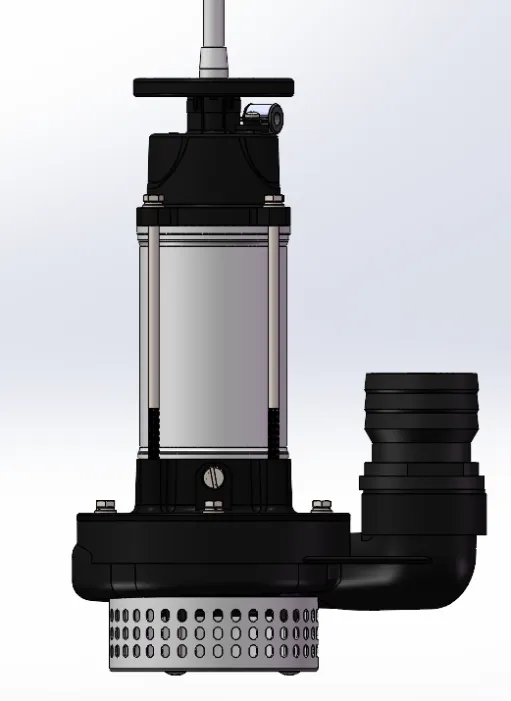

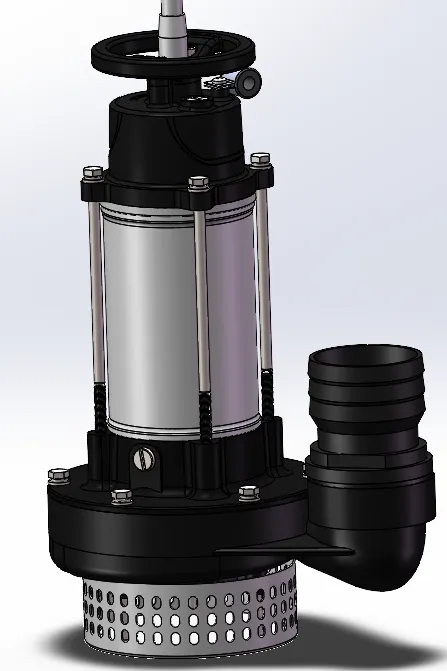

Product Image

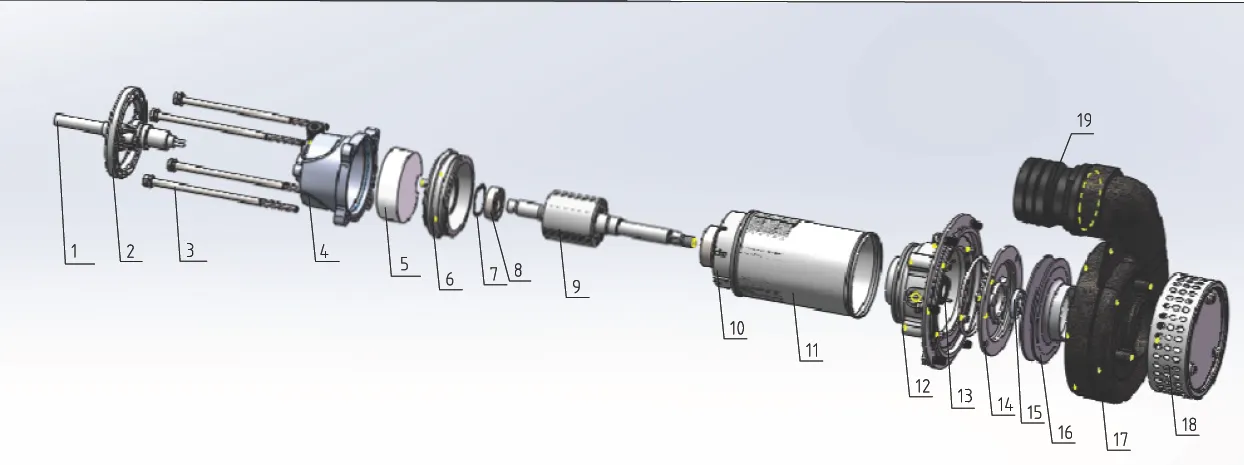

Model Analysis
| 1 | Cable | 11 | Frame |
| 2 | Handle | 12 | Oil Chamber |
| 3 | Screw | 13 | Mechanical Seal |
| 4 | Top Cover | 14 | Cylinder Cover |
| 5 | Controller | 15 | Skeleton Oil Seal |
| 6 | Upper Bearing Seat | 16 | Impeller |
| 7 | Wave Spring Pad | 17 | Pump Body |
| 8 | Bearing | 18 | Grating |
| 9 | Rotor Assembly | 19 | Joint |
| 10 | Stator |
