Description
Features

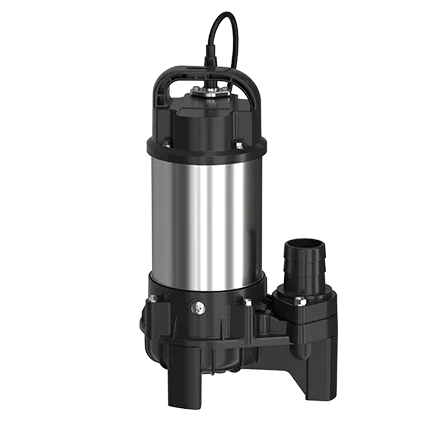

Anti-wicking cable and built-in thermal motor protection. High-grade bearings for high-temperature operation.
Back Pull-out design facilitates easier inspections.
treatment facilities.
Circulating water in waterscape garden(waterfallfountain,koi pond,etc.)
Pumping rainwater and springwater where objects are likely to run into the water.
Anti-wicking cable and built-in thermal motor protection. High-grade bearings for high-temperature operation.
Back Pull-out design facilitates easier inspections.
Dual inside mechanical seal eliminates kinds of spring failure
Application
Draining sewage from factory,residence,hotel,restaurant,etc. Transferring wastewater between the tanks at small-scaletreatment facilities.
Circulating water in waterscape garden(waterfallfountain,koi pond,etc.)
Pumping rainwater and springwater where objects are likely to run into the water.
Parameter
Technical Data-50Hz
|
Model |
Power |
Voltage |
Frequency |
Max.flow |
Max head |
Max diameter |
Outlet diameter |
|
kW |
V |
Hz |
m³/h |
m |
mm |
mm |
|
|
40WQDX8-5-0.25 |
0.25 |
220 |
50 |
13 |
7 |
35 |
40 |
|
50WQDX9-6-0.4 |
0.4 |
220 |
50 |
16 |
9.5 |
35 |
50 |
|
50WQDX12-9-0.75 |
0.75 |
220 |
50 |
22 |
12.5 |
35 |
50 |
|
40WQX8-5-0.25 |
0.25 |
380 |
50 |
13 |
7 |
35 |
40 |
|
50WQX9-6-0.4 |
0.4 |
380 |
50 |
16 |
9.5 |
35 |
50 |
|
50WQX12-9-0.75 |
0.75 |
380 |
50 |
22 |
12.5 |
35 |
50 |
|
80WQX25-9-1.5 |
1.5 |
380 |
50 |
45 |
15 |
46 |
80 |
Technical Data -60Hz
|
Model |
Power |
Voltage |
Frequency |
Max.flow |
Max head |
Max diameter |
Outlet diameter |
|
kW |
V |
Hz |
m³/h |
m |
mm |
mm |
|
|
40WQDX8-5-0.25 |
0.25 |
220 |
60 |
12 |
6 |
35 |
40 |
|
50WQDX9-6-0.4 |
0.4 |
220 |
60 |
17 |
9.5 |
35 |
50 |
|
50WQDX12-9-0.75 |
0.75 |
220 |
60 |
20 |
13.5 |
35 |
50 |
|
40WQX8-5-0.25 |
0.25 |
380 |
60 |
12 |
6 |
35 |
40 |
|
50WQX9-6-0.4 |
0.4 |
380 |
60 |
17 |
9.5 |
35 |
50 |
|
50WQX12-9-0.75 |
0.75 |
380 |
60 |
20 |
13.5 |
35 |
50 |
|
80WQX25-9-1.5 |
1.5 |
380 |
60 |
42 |
15.5 |
46 |
80 |
