Product overview

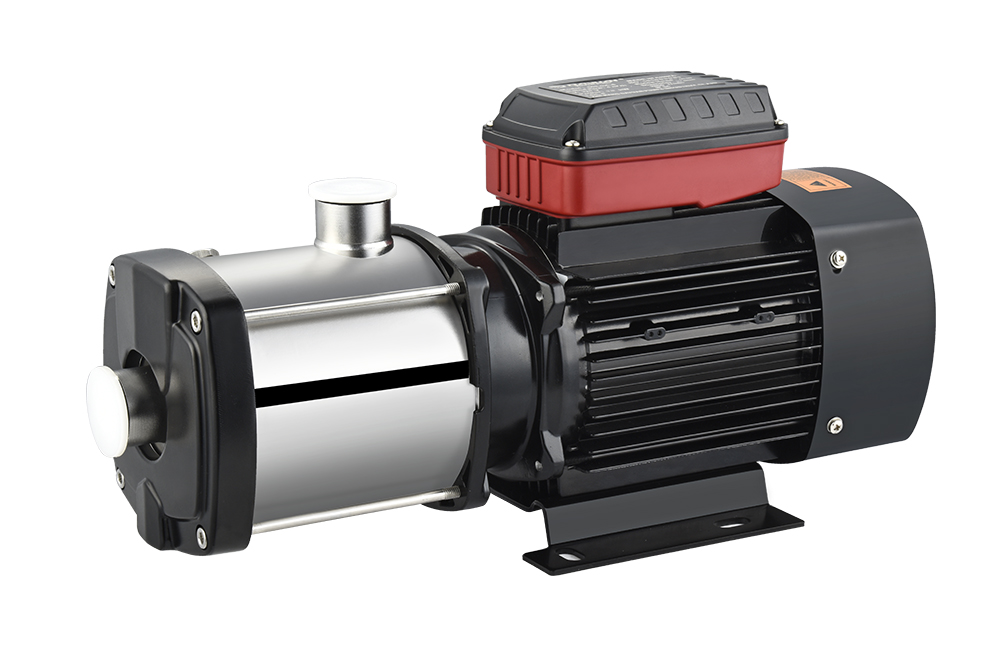

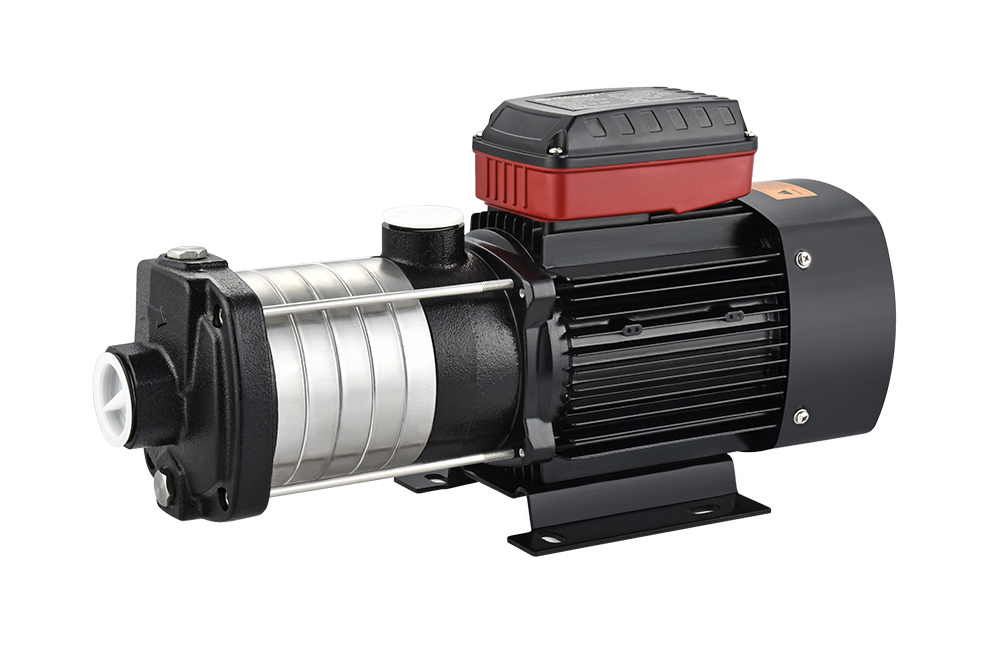

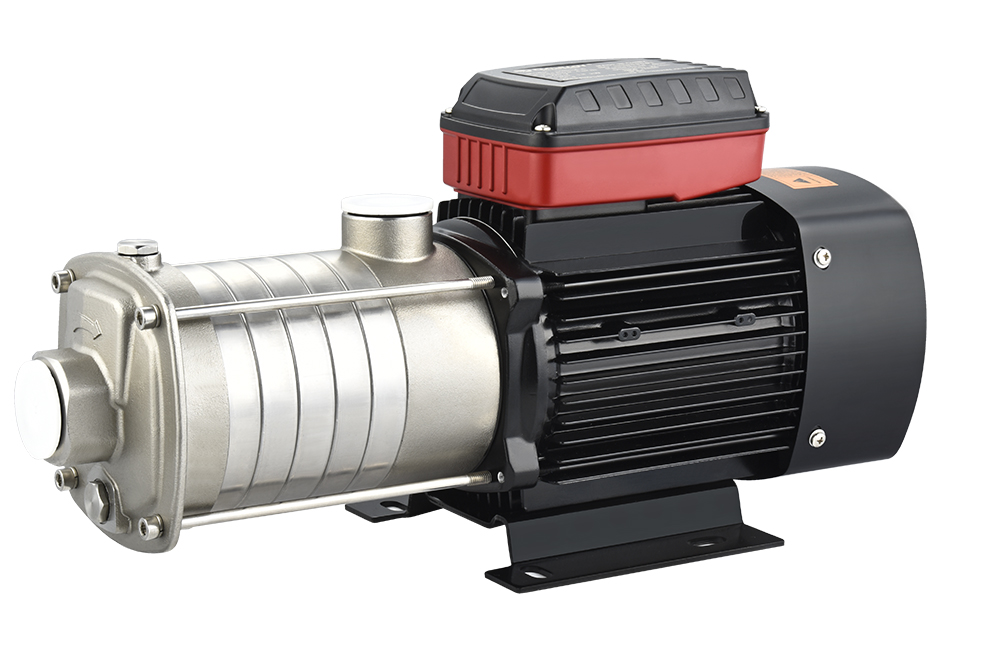

DH/DHS/DHL series are horizontal stainless steel multistage centrifugal pump, which can be widely used in domestic water supply, industry and construction. Including liquid transfer and circulation in light industry, pressure boost in domestic water supply, cooling system and air condition system.

Running conditions

  • Thin, Non-corrosive, non-flammable and explosive clean water without solid particle or fiber
  • Higher power driving motor is required when transfering liquid with higher density than water's
  • Liquid temperature range: 4°C-85°C
  • Max environmental temperaturel: +40°C
  • Max suction: Refer to NPSH of the pump, liquid temperature,sea level altitude of the application area and tube loss, etc
  • Max inlet pressure is limited by max operation pressure

Motor

  • wind cooling completely sealed motor
  • protection class : IP44
  • insulation grade: F
  • standard voltage: 1 x 220-240V,50HZ,3 x380
  • Single phase motor equipped with thermal overload protection, three phase motor should be actuated
  • by motor starter according to local regulation
